Fluted mill alu

References -Technical data

refArticle	Material	Length	Width	Type 1	Type 2	Max. load	designationComplete

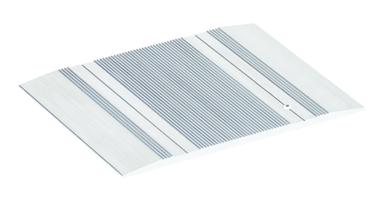

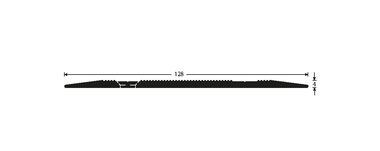

1805	Mill alu	3.00 m	128 mm	1 side drilled	Drilling for ø 3.5 mm screw	Admissible weight : 250 kg/ 5 cm²	FLUTED EXPANSION PROF 128MM MILL ALU SIDED DRIL 3M

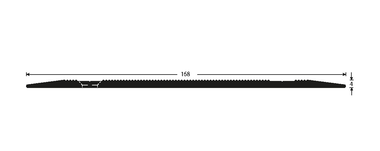

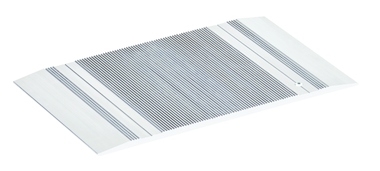

1806	Mill alu	3.00 m	168 mm	1 side drilled	Drilling for ø 3.5 mm screw	Admissible weight : 250 kg/ 5 cm²	FLUTED EXPANSION PROF 168MM MILL ALU SIDED DRIL 3M

Document downloads

Réf. 1805	Technical sheets	Dowload PDF
Réf. 1806	Technical sheets	Dowload PDF
