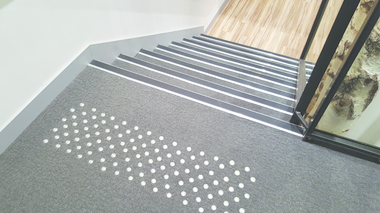

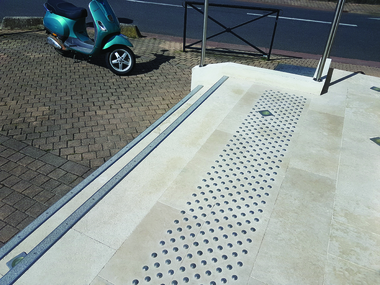

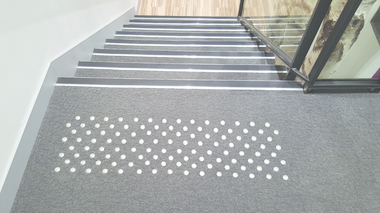

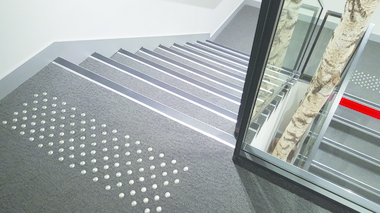

Tactile nails for embedding outdoors and indoors.It is advisable to use a drilling template, which reduces the installation time and ensures standard fitting.Th...
>> Desctexteproduit :

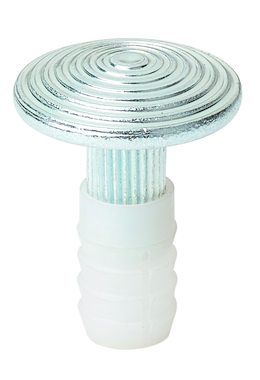

Tactile nails for embedding outdoors and indoors.It is advisable to use a drilling template, which reduces the installation time and ensures standard fitting.There are two possible types of installation, depending on the floor: • On hard floors (granite, marble, concrete, etc.) Insert the nail with plug ref 4359.Drill the substrate with a 10 mm dia. bit to a depth of 30 mm. Position the plug over the nail and insert them using a rubber mallet . • On semi-solid floors (screed, deactivated concrete) Insert nail without plug.Drill the substrate with a 10 mm dia. bit to a depth of 25 mm. Use a two-component resin and insert the nail. • On wood insert a nail without a plug.Use a wood-metal neoprene outdoor adhesive and then insert the nail.
References -Technical data
refArticle
descriptifReference
Material
Type 1
Packing
designationComplete
Référence
Matière
Conditionnement

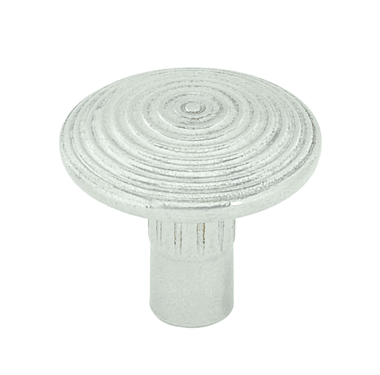

4355
Passivated A2-304 stainless steel studs for maximal corrosion protection.
Stainless steel 304
To be sealed
Pack of 216 studs. For approx. 1.40 m x 0.40 m or 1 m x 0.60 m
216 METACLOU FLUTED STAINLESS STEEL
4351
Low budget multi-purpose zinc-plated steel studs with high corrosion protection (400h red
rust in BS test).
Zinc-plated steel
To be sealed
Pack of 216 studs. For approx. 1.40 m x 0.40 m or 1 m x 0.60 m
216 METACLOU FLU ZINC-PL SIL

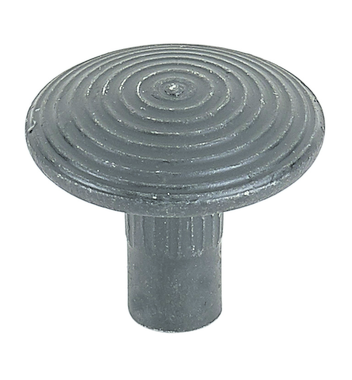

4352
Low budget multi-purpose zinc-plated steel studs with high corrosion protection. Black zinc coating gives an old-looking, timeless aspect.
Black plated steel
To be sealed
Pack of 216 studs. For approx. 1.40 m x 0.40 m or 1 m x 0.60 m
216 METACLOU BLACK ZINC-PL SIL

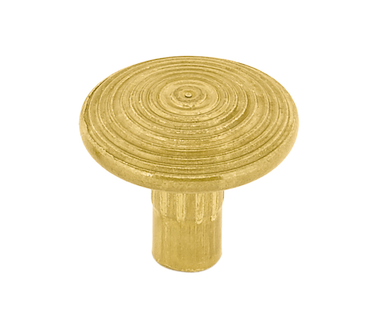

4357
Over time, it acquires a grey-green patina, in perfect harmony with historical buildings
(churches, castles…)
Brass
To be sealed
Pack of 216 studs. For approx. 1.40 m x 0.40 m or 1 m x 0.60 m
216 METACLOU FLUTED BRASS
4354
Passivated A4-316 stainless steel studs for maximal corrosion protection. Particularly
recommended for seaside and coastal areas
Stainless steel 316
To be sealed
Pack of 216 studs. For approx. 1.40 m x 0.40 m or 1 m x 0.60 m
BOX OF 216 METACLOU FLUTED STAINLESS STEEL - 316
4350
Studs in thermo-lacquered zinc-plated steel (powder epoxy paint) bright or satin finish, resistant to traffic. RAL and finish to be specified.
Zinc-plated steel colour
To be sealed
Minimum 216 studs - Price per stud.
METACLOU TACTILE FLUTED STUDS STEEL Z COLOUR / PACK OF 216
