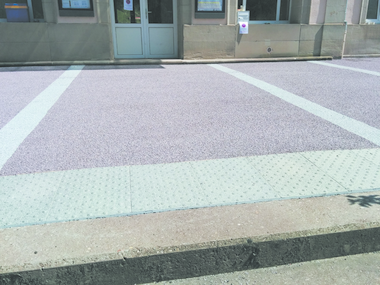

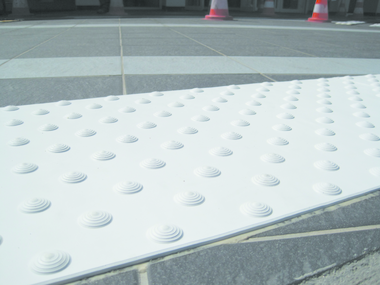

Tile application

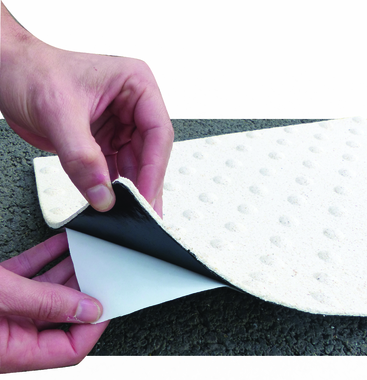

ADHEXT Adhesive tile

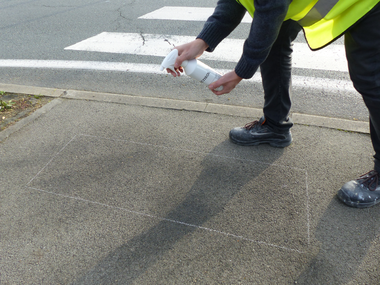

Application of activator

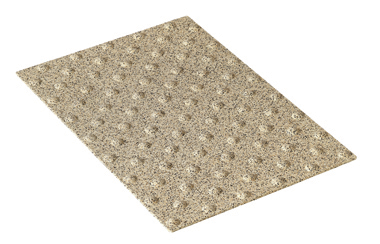

Beige chips

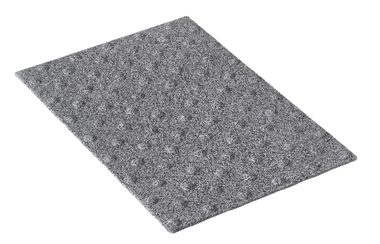

Grey chips

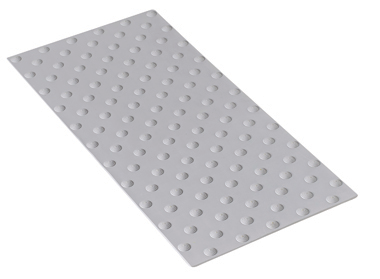

Grey

Yellow

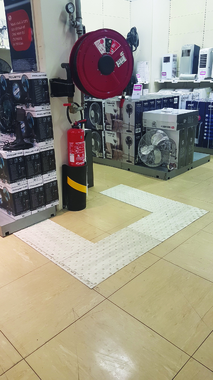

White

White

«exteline» tactile floor tiles

  • PRODUCT DESCRIPTION

    The tile is also available in a self-adhesive version. On concrete or surfacing, spray ACTISOL activator ref. 14231 just before applying the self-adhesive tile.

    Find out more

  • CHOICE OF CRITERIA
Detailed description

>> Desctexteproduit :

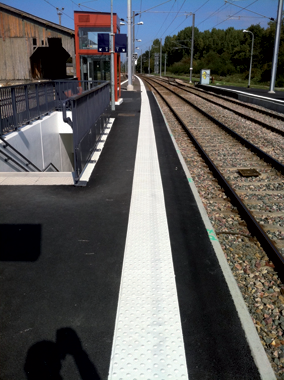

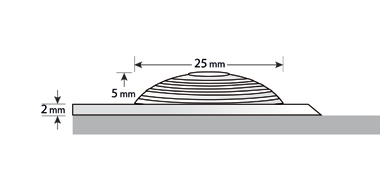

Tactile and visual tile intended for alerting blind and partially sighted people to imminent dangers on their way like: • road crossing • railway platform edge • bus stop • outdoor stairs... Made in methacrylate resin, these tiles are highly flexible, do not turn yellow with UV light, resist to tear, are anti-slip (even wet) and anti-fouling. Weight 1.8 kg. To glue with an METACOL (Methacrylate) adhesive. In the case of concrete or asphalt support, apply an METAPRIM primer. Make sure the studs have been properly smoothed.

>> Informations supplementaires p :
The tile is also available in a self-adhesive version. On concrete or surfacing, spray ACTISOL activator ref. 14231 just before applying the self-adhesive tile.

References -Technical data
Référence Matière Coloris Epaisseur Dimensions Type 1 designationComplete refArticle Material Colours Thickness infos supplementaires R

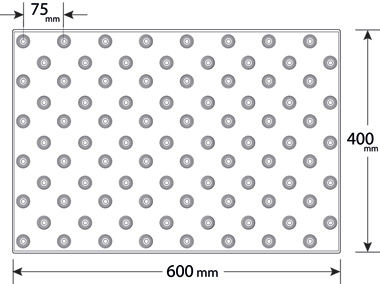

600 x 400 mm To be glued EXTELINE METHACRYLATE WARNING TILE 60 X 40CM BEIGE 4208 Methacrylate Beige chips 7 mm
600 x 400 mm To be glued EXTELINE METHACRYLATE WARNING TILE 60 X 40 CM GREY 4207 Methacrylate Grey chips 7 mm
600 x 400 mm To be glued EXTELINE METHACRYLATE WARNING TILE 60 X 40CM WHITE 4206 Methacrylate White 7 mm

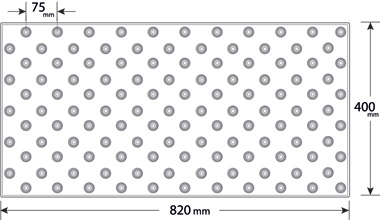

820 x 400 mm To be glued EXTELINE TACTILE TILE GREY 82 X 40 CM 4218 Methacrylate Grey Ral 7040 7 mm

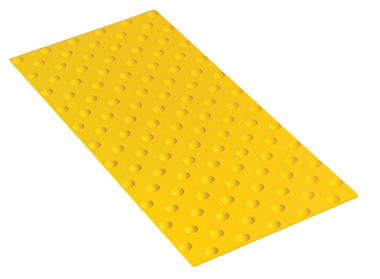

820 x 400 mm To be glued EXTELINE TACTILE TILE YELLOW 82 X 40 CM 4219 Methacrylate Yellow Ral 1023 7 mm
820 x 400 mm To be glued EXTELINE TACTILE TILE WHITE 82 X 40 CM 14220 Methacrylate White* 7 mm *“Special work site” order, min. 80 pieces (box of 20)

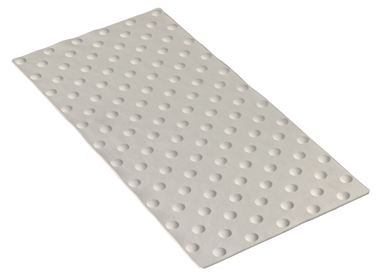

820 x 400 mm To be glued EXTELINE TACTILE TILE WHITE 82 X 40 CM 4220 Methacrylate White 7 mm
600 x 400 mm ADHEXT Self-adhesive EXTELINE METHACRY WARNING TILE 60X40CM WHITE SELFA 4210 Methacrylate White 7 mm
820 x 400 mm ADHEXT Self-adhesive EXTELINE METHACR WARNING TILE WHITE 82X40 CM SELFA 4205 Methacrylate White 7 mm
Document downloads
4218-4219-4220 DALLES PODOTACTILES EXTELINE_GB.pdf fichier FT 4218-4219-4220 DALLES PODOTACTILES EXTELINE_GB.pdf
4205 ROMUS SELF-ADHESIVE EXTELINE WARNING TILE_GB.pdf fichier MD 4205 ROMUS SELF-ADHESIVE EXTELINE WARNING TILE_GB.pdf
